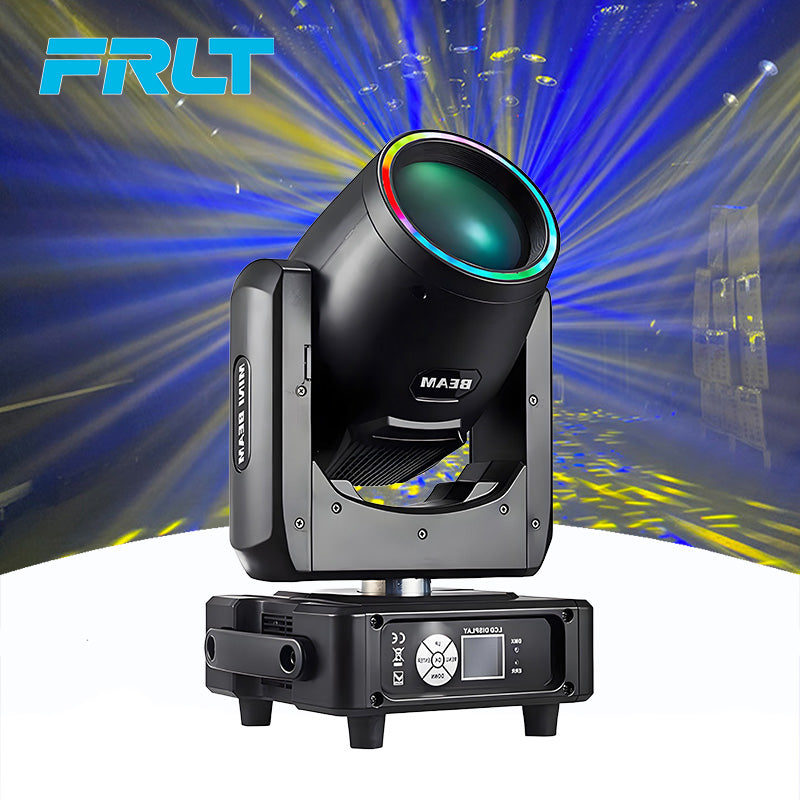

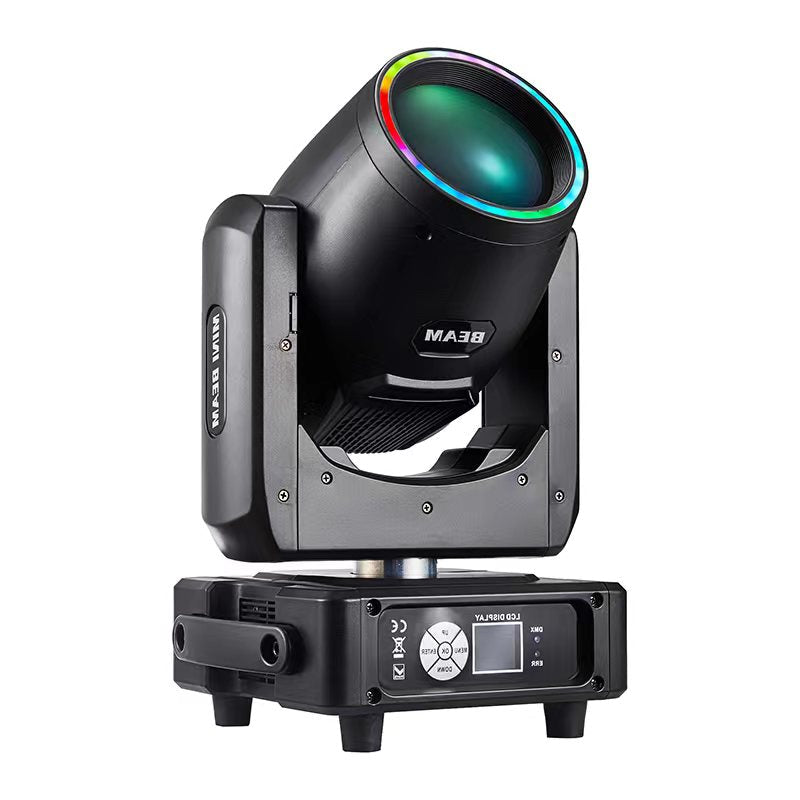

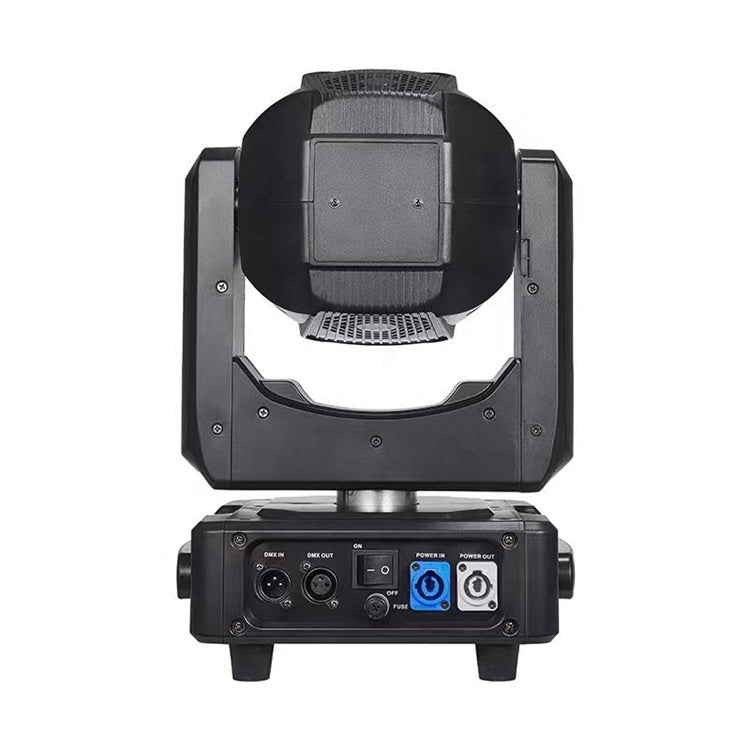

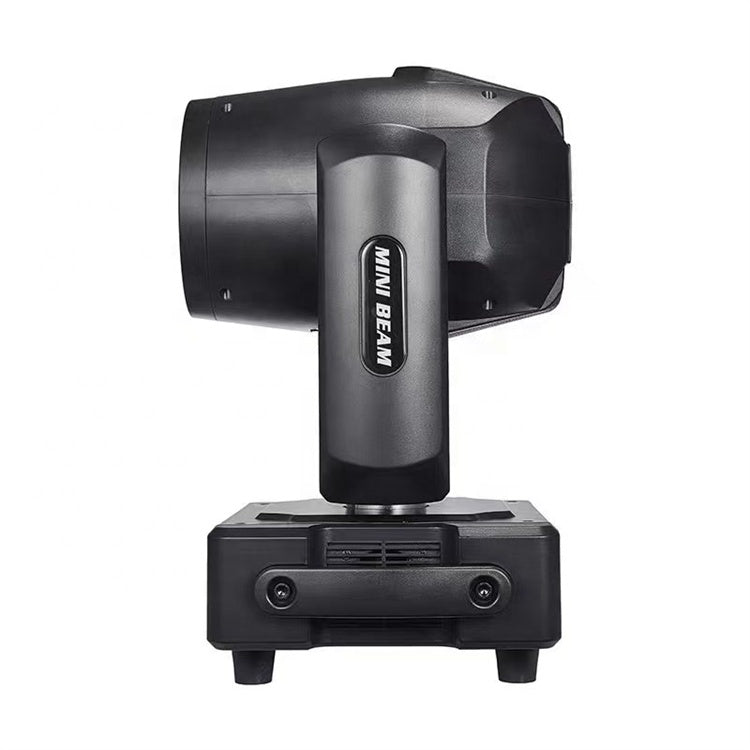

230W Beam Light

Product Parameters

Mini 230mm Beam Light (with Aperture)
Technical Parameters:
1. Bulb Model: Custom 230W Bulb
2. Auxiliary Light: 27 0.5W RGB 3-in-1 LEDs
3. Control: On/off or manual
4. Ballast: Electronic ballast (380V input)
5. Power Supply: Switching Power Supply (100-240V input)
6. Main Color Wheel: 14 colors + white, rainbow effect, 14 linear color blending
6. Pattern Wheel: 14 fixed patterns + white
Flowing pattern effect, oscillating pattern effect, pattern positioning at any angle, clockwise/counterclockwise rotation
7. Strobe: Independent strobe channel, 1-10 times/second, built-in macro function
8. Dimming: Independent dimming channel, 0-100 linear precision dimming
9. Atomization: Independent linear atomization
10. Special Effects: 8+16+24 (optional 8+16) prism effect Magnification effect
Prism positioning and rotation at any angle, built-in programmable prism pattern combinations, precise motorized focus
11. X/Y axis movement: 540° on the X axis, 280° on the Y axis, with automatic error correction on the X/Y axes
Independent X/Y axis speed adjustment, rotation fine-tuning
12. X/Y axis resolution: 8/16 bit
13. Control and programming: 16 standard DMX512 channels
Built-in microphone for voice control
Dimensions: 51.5*37*40
Gross weight: 11 kg
